QUOTE
TM-SERIES HEAVY-DUTY FLEET PROGRAM / 2026

HEAVY IRON FOR HARD GROUND

Dump trucks, tractor units, semi-trailers, low beds and truck-mounted cranes — configured in Liangshan for the duty cycle you actually run: open-pit mining, desert long-haul, port transfer and urban construction.

  • 01 Axle ratio, cooling package, tyre pattern and body signed off line by line before the PI
  • 02 Load, brake and leak tested before paint — test sheet and video travel with your documents
  • 03 Wear-parts kit sized to your annual hours, shipped inside the same container
  • 04 SGS / BV inspection booked in your own name — you pick the inspector, we invoice it at cost

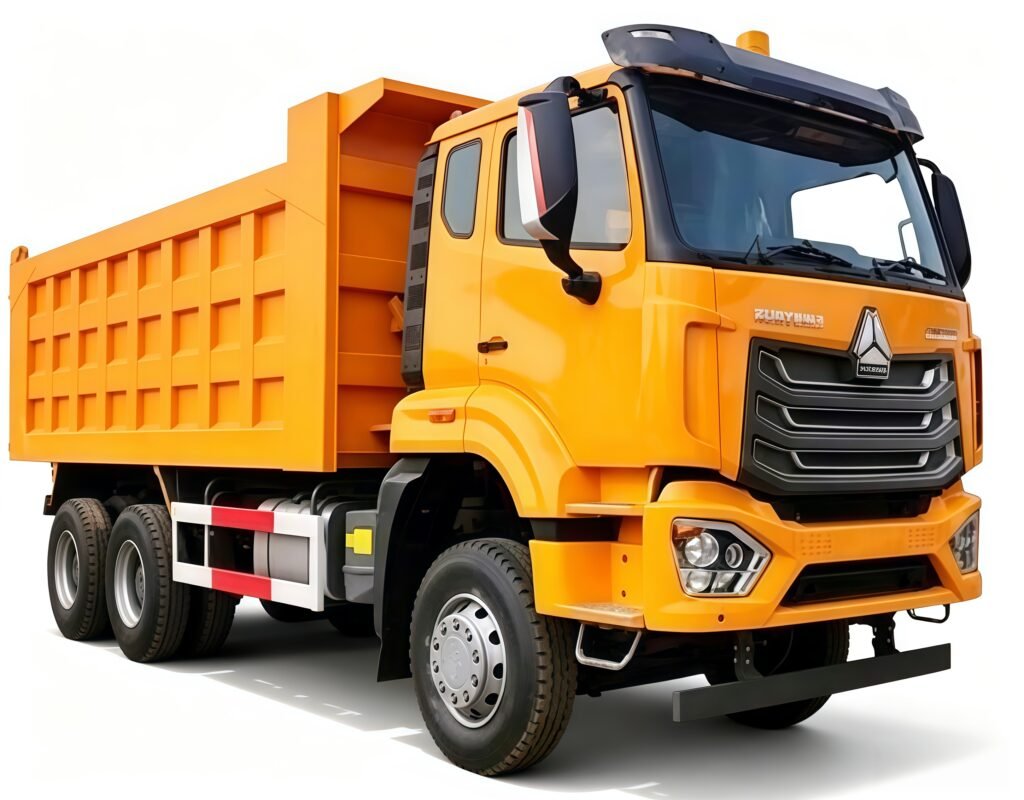

RIG-01 / HOWO-371 6×4 DUMP TRUCK
HOWO 6x4 dump truck configured for export 1 2 3 HOWO-371
  • 01 12.00R20 mining-pattern tyre, 20-ply
  • 02 Front-mounted telescopic tipping cylinder
  • 03 16 mm hardened cargo body, 8 mm floor
ENGINEWP12 / WP13375–560 HP
DRIVE4×2 / 6×4 / 8×4Euro II–V
PAYLOAD25 – 120 Tby configuration
MARKETS0countries, repeat orders
DELIVERED0units, inspected before loading
AFRICA · MIDDLE EAST · MEXICO◆ RO-RO / FLAT RACK / BULK◆ HOWO · SHACMAN · FAW · SINOTRUK◆ SPARE PARTS SHIPPED WITH UNIT◆ ISO / SGS / BV INSPECTION◆ 15-DAY LEAD TIME ON STOCK UNITS◆ AFRICA · MIDDLE EAST · MEXICO◆ RO-RO / FLAT RACK / BULK◆ HOWO · SHACMAN · FAW · SINOTRUK◆ SPARE PARTS SHIPPED WITH UNIT◆ ISO / SGS / BV INSPECTION◆ 15-DAY LEAD TIME ON STOCK UNITS◆
01

FIVE LINES.
60 VARIANTS.

Not a truck shop that also sells trailers. Five product lines, one export desk, one bill of lading. Open a line to see every variant we build — or filter the fleet below by line and by sourcing type.

PRODUCT LINES05
VARIANTS60
SOURCINGNEW / USED / REMAN
MOQ1 UNIT

Body not on the list? Plate thickness, deck length, axle spacing and paint are changed on order — send the drawing or the job, we quote the build.

SEND A BUILD REQUEST →
02

CHOOSE BY DUTY,
NOT BY CATALOGUE

Most exporters show you a wall of trucks. We start from the ground you drive on. Pick the working condition — we bring the configuration, the axle count, the cooling package and the tyre spec that survives it.

CONDITION A

OPEN-PIT MINE

Gradient
12 – 18 %
Surface
Unpaved laterite
Cycle
Short, 24/7

Reinforced 16 mm body, 8 mm floor plate, 20-ply mining tyres, enlarged radiator + oil-bath air filter, rear-axle ratio 5.73.

TM-D375 8×4 DUMP  →
CONDITION B

DESERT & LONG HAUL

Ambient
45 – 55 °C
Leg
800 + km
Surface
Sand / asphalt

Dual-stage fuel filtration, 600 L + 400 L tanks, sand cyclone pre-filter, cabin A/C upgrade, 90 km/h economy rear-axle ratio.

TM-T460 TRACTOR + TM-S40  →
CONDITION C

PORT & TERMINAL

Duty
24/7 transfer
Air
Salt / humid
Load
Container / coil

Marine-grade anti-corrosion package, sealed harness, 3-axle low bed or container skeleton, 50 mm kingpin, WABCO valve set.

TM-X75 HEAVY HAUL  →
CONDITION D

URBAN CONSTRUCTION

Site
Narrow, night
Power
PTO driven
Load
8 – 12 m³

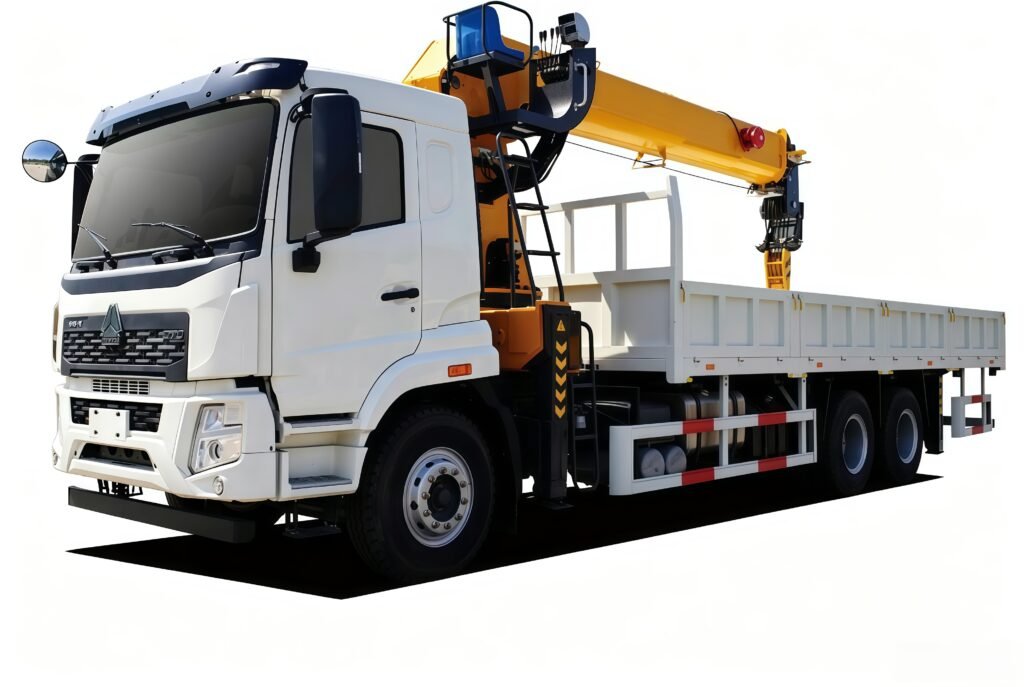

12 t knuckle-boom or straight-boom crane, 8 m³ mixer drum, short wheelbase chassis, rear stabilisers, work lamps.

TM-C12 CRANE / TM-M12 MIXER  →
03

THE FLEET INDEX

60 sub-categories across five lines — 8 products in every category. Pick a category, then the configuration: axle count, body, tyre, cooling and paint are agreed line by line before the proforma.

04

PARAMETER COMPARISON

Tick COMPARE on any unit above and it lands here. Rows marked ▲ differ between the selected models.

GET COMPARISON SHEET (PDF)
PARAMETER TM-D375DUMP 8×4 TM-T460TRACTOR 6×4 TM-C12CRANE 12 T
EngineWP12.430WP13.460WP10.350
Rated power375 HP460 HP350 HP
Drive8×46×46×4
EmissionEuro II / IIIEuro II / IIIEuro II / III
GVW / GCW31 T90 T25 T
Payload40 T—12 T
Body / deck18 m³ dumperfifth wheelflatbed + crane
Axles433
Tyres12.00R2012.00R2012.00R20
Fuel tank400 L600 + 400 L300 L
CabinHW76 sleeperHW76 sleeperHW76 day
Lead time15 – 25 d20 – 30 d25 – 35 d
Warranty12 mo / 100,000 km12 mo / 100,000 km12 mo / 100,000 km
FOB QingdaoUSD 41,800USD 45,600USD 52,300

Prices are indicative and move with configuration, quantity and shipping method. Final numbers are issued as a signed proforma within 24 h of enquiry.

05

PARTS & COMPONENTS

A truck that stops for a 40-dollar seal is not a cheap truck. Every unit can leave with a parts package sized to your fleet — genuine, OEM-equivalent or high-wear, your call.

GET PARTS CATALOGUE (PDF)
A

POWERTRAIN

  • Engine assembly & long block
  • Turbocharger & intercooler
  • Fuel pump / injectors
  • Clutch disc & pressure plate
  • Gearbox & transfer case
B

HYDRAULICS

  • Tipping cylinder & pump
  • Crane boom cylinder
  • Control valve block
  • Hose set & fittings
  • PTO & oil cooler
C

BODY & STRUCTURE

  • Cargo body floor / side plate
  • Tailgate & locking hook
  • Fifth wheel & kingpin
  • Sub-frame & cross member
  • Mudguard / tool box
D

RUNNING GEAR

  • Axle shaft & hub
  • Leaf spring / air bag
  • Brake drum, shoe, lining
  • WABCO valve & air dryer
  • Tyres 12.00R20 / 315/80R22.5
E

ELECTRICAL

  • Alternator & starter
  • Battery set 180 Ah
  • Lamp & work-light kit
  • Wiring harness
  • Sensor & gauge cluster
F

WEAR-PARTS KIT

Pre-packed for 12 months / 100,000 km of duty. Ships inside the container, no extra freight.

  • Oil & fuel filters × 6 sets
  • Brake lining set
  • Belt & hose set
  • Seal & gasket set
  • U-bolt & spring pin
REQUEST KIT LIST →
06

FROM LIANGSHAN
TO YOUR SITE

Door-to-port in China, port-to-site on your side. You always know which stage the unit is in and which document is next.

  1. 01

    SPEC LOCK

    D1 – D3

    Configuration sheet signed, proforma issued, PI confirmed.

  2. 02

    BUILD / UPFIT

    D4 – D20

    Body, crane, tank or paint completed; photos sent every 5 days.

  3. 03

    QC & INSPECTION

    D21 – D23

    Load test, brake test, leak test; SGS / BV on request.

  4. 04

    INLAND & PORT

    D24 – D27

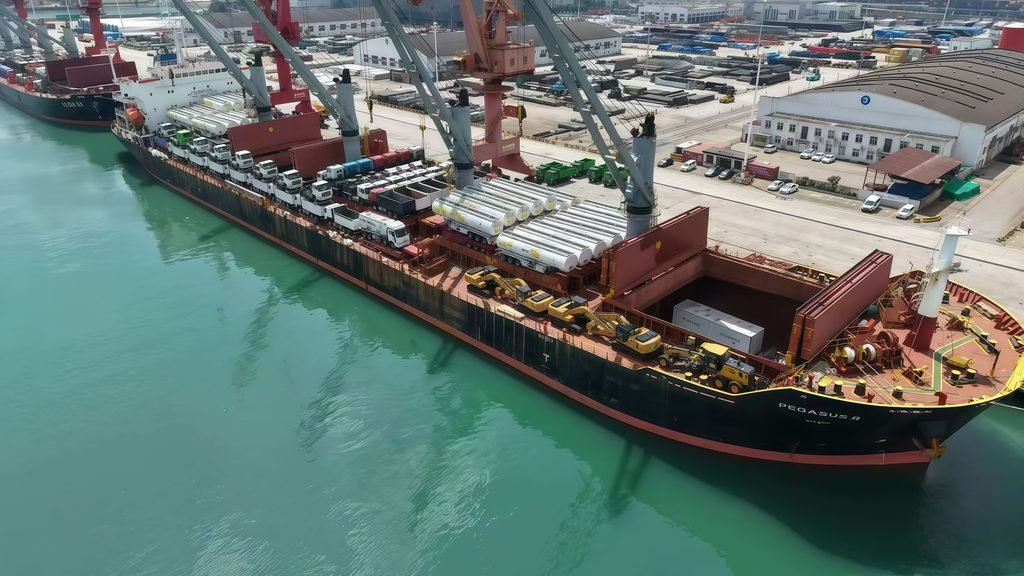

    To Qingdao / Lianyungang; RO-RO, flat rack or bulk booking.

  5. 05

    DOCUMENTS

    D28 – D32

    B/L, CIQ, CO / FTA, packing list, insurance, ECTN where required.

  6. 06

    ARRIVAL

    + 18 – 38 d

    Lagos, Dar es Salaam, Mombasa, Jebel Ali, Manzanillo, Veracruz.

MANZANILLOVERACRUZLAGOSTEMA MOMBASADAR ES SALAAMDURBANJEBEL ALI DAMMAMBANDAR ABBASAQABADJIBOUTI
07

FIELD NOTES

Duty-cycle data, spec decisions and shipping arithmetic — written by the export desk after the units came back with hour meters on them.

ALL ARTICLES →
08

WHY BUYERS STAY WITH TENGMA

01

ONE SUPPLIER, WHOLE COMBINATION

Tractor, trailer and crane matched as one package — no fifth-wheel mismatch, no wiring conflicts, no split liability.

02

REBUILD SHOP, NOT A TRADING DESK

Liangshan body and upfit line: plate thickness, rib spacing and cylinder mounting are changed on order, not quoted from a catalogue.

03

PARTS SCALE WITH THE FLEET

1 unit or 30 — the wear-parts kit is sized to your annual running hours and shipped with the order.

04

PAPERWORK THAT CLEARS

CO / FTA, ECTN, SONCAP, PVoC and consular documents are drafted before the vessel sails, and sent to you to check first. If a document is rejected at destination because of our error, the corrected set is couriered at our cost.

All four are written into the proforma, not left to goodwill: inspection standard, spare-parts list, document set, and the week the vessel sails.

09

START AN ENQUIRY

Four fields. We answer with a configuration sheet and an indicative FOB number within 24 hours.

  • RESPONSE< 24 H
  • WORKINGMON – SAT
  • LANGUAGEEN / ES / FR / 中文

No registration. We reply once, with numbers. Your data is not shared.

PEOPLE

FOUR DIRECT LINES, NO SWITCHBOARD

Every enquiry goes to the partner who handles it. All e-mail on this site lands in one export-desk mailbox that the four of them read — or reach them directly on WhatsApp or WeChat. Write to enquiries@shandongheavymach.com.

QUOTE WHATSAPP PDF
